neuron.c File Reference

#include <stdlib.h>
#include "ANN/models/PCFNN/neuron.h"

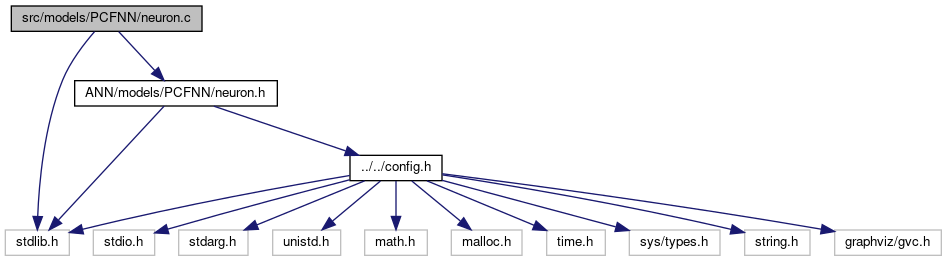

Include dependency graph for neuron.c:

Go to the source code of this file.

Functions
struct PCFNN_NEURON *	PCFNN_NEURON_new (size_t size, double(*f_init)(), double(*f_act)(double), double(*f_act_de)(double))
	Initialize a PCFNN_NEURON. More...
void	PCFNN_NEURON_clear (struct PCFNN_NEURON *n)
	Clear a PCFNN_NEURON. More...
void	PCFNN_NEURON_free (struct PCFNN_NEURON *n)
	Free all memory allocation of an PCFNN_NEURON. More...
void	PCFNN_NEURON_addinputs (struct PCFNN_NEURON *n, size_t inputs)
	Increase the input size of the PCFNN_NEURON. More...
void	PCFNN_NEURON_build (struct PCFNN_NEURON *n)
	Initialize all internal data of a PCFNN_NEURON. More...
size_t	PCFNN_NEURON_get_ram_usage (struct PCFNN_NEURON *n)
	Give the number of bytes used by the PCFNN_NEURON n. More...
struct PCFNN_NEURON *	PCFNN_NEURON_clone (struct PCFNN_NEURON *n)
	Copy the input size, initialisation function and activation function from n and create a new PCFNN_NEURON. More...
struct PCFNN_NEURON *	PCFNN_NEURON_clone_all (struct PCFNN_NEURON *n)
	Copy all data from n and create a new PCFNN_NEURON. More...
void	PCFNN_NEURON_set_state_lock (struct PCFNN_NEURON *n, enum PCFNN_NEURON_LOCK_STATE state)
	Set lock state of the neuron n. More...
void	PCFNN_NEURON_summary (struct PCFNN_NEURON *n, size_t param[2])
	Write on param the number of unlocked parameters and locked parameters. More...

Function Documentation

PCFNN_NEURON_addinputs()

void PCFNN_NEURON_addinputs	(	struct PCFNN_NEURON *	n,
		size_t	inputs
	)

Increase the input size of the PCFNN_NEURON.

Parameters

[in]	n	(struct PCFNN_NEURON*) a pointer an a PCFNN_NEURON
[in]	inputs	(size_t) number of input to add. if 0 do nothing.

Definition at line 41 of file neuron.c.

PCFNN_NEURON_build()

void PCFNN_NEURON_build

(

struct PCFNN_NEURON *

n

)

Initialize all internal data of a PCFNN_NEURON.

Parameters

[in]

n

(struct PCFNN_NEURON*) a pointer an a PCFNN_NEURON

Definition at line 48 of file neuron.c.

PCFNN_NEURON_clear()

void PCFNN_NEURON_clear

(

struct PCFNN_NEURON *

n

)

Clear a PCFNN_NEURON.

Parameters

[in]

n

(struct PCFNN_NEURON*) a pointer an a PCFNN_NEURON

Definition at line 21 of file neuron.c.

PCFNN_NEURON_clone()

struct PCFNN_NEURON* PCFNN_NEURON_clone

(

struct PCFNN_NEURON *

n

)

Copy the input size, initialisation function and activation function from n and create a new PCFNN_NEURON.

Parameters

[in]

n

(struct PCFNN_NEURON*) a pointer an a PCFNN_NEURON

Returns

(struct PCFNN_NEURON*) the new neuron or NULL if an error occured

Definition at line 70 of file neuron.c.

Here is the call graph for this function:

PCFNN_NEURON_clone_all()

struct PCFNN_NEURON* PCFNN_NEURON_clone_all

(

struct PCFNN_NEURON *

n

)

Copy all data from n and create a new PCFNN_NEURON.

Parameters

[in]

n

(struct PCFNN_NEURON*) a pointer an a PCFNN_NEURON

Returns

(struct PCFNN_NEURON*) the new neuron or NULL if an error occured

Definition at line 77 of file neuron.c.

Here is the call graph for this function:

PCFNN_NEURON_free()

void PCFNN_NEURON_free

(

struct PCFNN_NEURON *

n

)

Free all memory allocation of an PCFNN_NEURON.

Parameters

[in]

n

(struct PCFNN_NEURON*) a pointer an a PCFNN_NEURON to free

Definition at line 28 of file neuron.c.

PCFNN_NEURON_get_ram_usage()

size_t PCFNN_NEURON_get_ram_usage

(

struct PCFNN_NEURON *

n

)

Give the number of bytes used by the PCFNN_NEURON n.

Parameters

[in]

n

(struct PCFNN_NEURON*) a pointer an a PCFNN_NEURON

Returns

(size_t) number of bytes

Definition at line 60 of file neuron.c.

PCFNN_NEURON_new()

struct PCFNN_NEURON* PCFNN_NEURON_new	(	size_t	size,
		double(*)()	f_init,
		double(*)(double)	f_act,
		double(*)(double)	f_act_de
	)

Initialize a PCFNN_NEURON.

Parameters

[in]	size	(size_t) input size
[in]	f_init	(double(*f_init)()) a pointer on an weights/bias initialisation functon or NULL
[in]	f_act	(double(*f_act)(double)) a pointer on activation functon or NULL
[in]	f_act_de	(double(*f_act_de)(double)) a pointer on derivative activation functon who is the derivate of the f_act function pointer or NULL

Returns

PCFNN_NEURON structure pointer or NULL if an error occured

Definition at line 6 of file neuron.c.

PCFNN_NEURON_set_state_lock()

void PCFNN_NEURON_set_state_lock	(	struct PCFNN_NEURON *	n,
		enum PCFNN_NEURON_LOCK_STATE	state
	)

Set lock state of the neuron n.

Parameters

[in]	n	(struct PCFNN_NEURON*) a pointer an a PCFNN_NEURON
[in]	state	(enum PCFNN_NEURON_LOCK_STATE) lock state

Definition at line 97 of file neuron.c.

PCFNN_NEURON_summary()

void PCFNN_NEURON_summary	(	struct PCFNN_NEURON *	n,
		size_t	param[2]
	)

Write on param the number of unlocked parameters and locked parameters.

Parameters

[in]	n	(struct PCFNN_NEURON*) a pointer an a PCFNN_NEURON
[out]	param	(size_t) param[0] will be the number of unlocked parameters and param[1] the number of locked parameters

Definition at line 103 of file neuron.c.
