graph.h File Reference

PCFNN_GRAPH. More...

#include "../../config.h"
#include <stdlib.h>
#include <stdio.h>
#include "neuron.h"
#include "layer.h"
#include "network.h"
#include <graphviz/gvc.h>
#include <graphviz/graph.h>

Include dependency graph for graph.h:

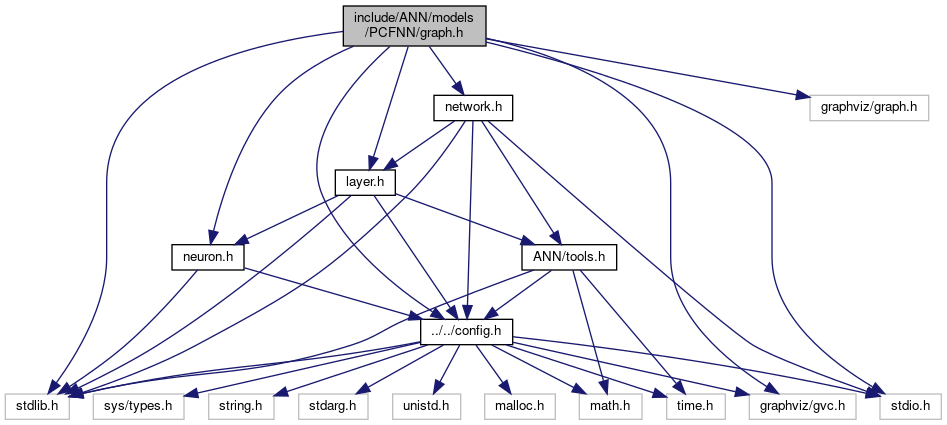

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
Agraph_t *	PCFNN_GRAPH_create_graph (struct PCFNN_NETWORK *net, char *graph_name)
	Generate a graph (with graphviz) from the given PCFNN_NETWORK. More...
int	PCFNN_GRAPH_create_graph_to_dot_file (struct PCFNN_NETWORK *net, char *graph_name, char *fout)
	Generate a graph (with graphviz) from the given PCFNN_NETWORK and write it to fout with the dot file format. More...
int	PCFNN_GRAPH_render_graph_to_stream (struct PCFNN_NETWORK *net, char *graph_name, char *format, FILE *fout) __attribute__((deprecated))
	Generate a graph (with graphviz) from the given PCFNN_NETWORK and render it to the given stream fout with the given format. More...
int	PCFNN_GRAPH_render_graph_to_file (struct PCFNN_NETWORK *net, char *graph_name, char *format, char *fout) __attribute__((deprecated))
	Generate a graph (with graphviz) from the given PCFNN_NETWORK and render it to the given path fout with the given format. More...

Detailed Description

PCFNN_GRAPH.

Author

Cedric FARINAZZO

Version

0.1

Date

24 may 2019

Graph functions for PCFNN neural network

Definition in file graph.h.

Function Documentation

PCFNN_GRAPH_create_graph()

Agraph_t * PCFNN_GRAPH_create_graph	(	struct PCFNN_NETWORK *	net,
		char *	graph_name
	)

Generate a graph (with graphviz) from the given PCFNN_NETWORK.

Parameters

[in]	net	(struct PCFNN_NETWORK*) a pointer an a PCFNN_NETWORK
[in]	graph_name	(char*) name of your network

Returns

Agraph_t*: graphviz graph pointer

Definition at line 17 of file graph.c.

PCFNN_GRAPH_create_graph_to_dot_file()

int PCFNN_GRAPH_create_graph_to_dot_file	(	struct PCFNN_NETWORK *	net,
		char *	graph_name,
		char *	fout
	)

Generate a graph (with graphviz) from the given PCFNN_NETWORK and write it to fout with the dot file format.

Parameters

[in]	net	(struct PCFNN_NETWORK*) a pointer an a PCFNN_NETWORK
[in]	graph_name	(char*) name of your network
[in]	fout	(char*) path to file

Returns

0 if ok otherwise -1

Definition at line 90 of file graph.c.

Here is the call graph for this function:

PCFNN_GRAPH_render_graph_to_file()

int PCFNN_GRAPH_render_graph_to_file	(	struct PCFNN_NETWORK *	net,
		char *	graph_name,
		char *	format,
		char *	fout
	)

Generate a graph (with graphviz) from the given PCFNN_NETWORK and render it to the given path fout with the given format.

Parameters

[in]	net	(struct PCFNN_NETWORK*) a pointer an a PCFNN_NETWORK
[in]	graph_name	(char*) name of your network
[in]	format	(char*) name of the renderer to use (ex: png, ps, dot, ...)
[in]	fout	(char*) path to file (will be created if not already exist)

Returns

0 if ok otherwise -1

Bug:

GvContext internal memleak

Deprecated:

reason: GvContent internal memleak

Definition at line 132 of file graph.c.

Here is the call graph for this function:

PCFNN_GRAPH_render_graph_to_stream()

int PCFNN_GRAPH_render_graph_to_stream	(	struct PCFNN_NETWORK *	net,
		char *	graph_name,
		char *	format,
		FILE *	fout
	)

Generate a graph (with graphviz) from the given PCFNN_NETWORK and render it to the given stream fout with the given format.

Parameters

[in]	net	(struct PCFNN_NETWORK*) a pointer an a PCFNN_NETWORK
[in]	graph_name	(char*) name of your network
[in]	format	(char*) name of the renderer to use (ex: png, ps, dot, ...)
[in]	fout	(FILE*) stream to file with written permission

Returns

0 if ok otherwise -1

Bug:

GvContext internal memleak

Deprecated:

reason: GvContent internal memleak

Definition at line 110 of file graph.c.

Here is the call graph for this function:
